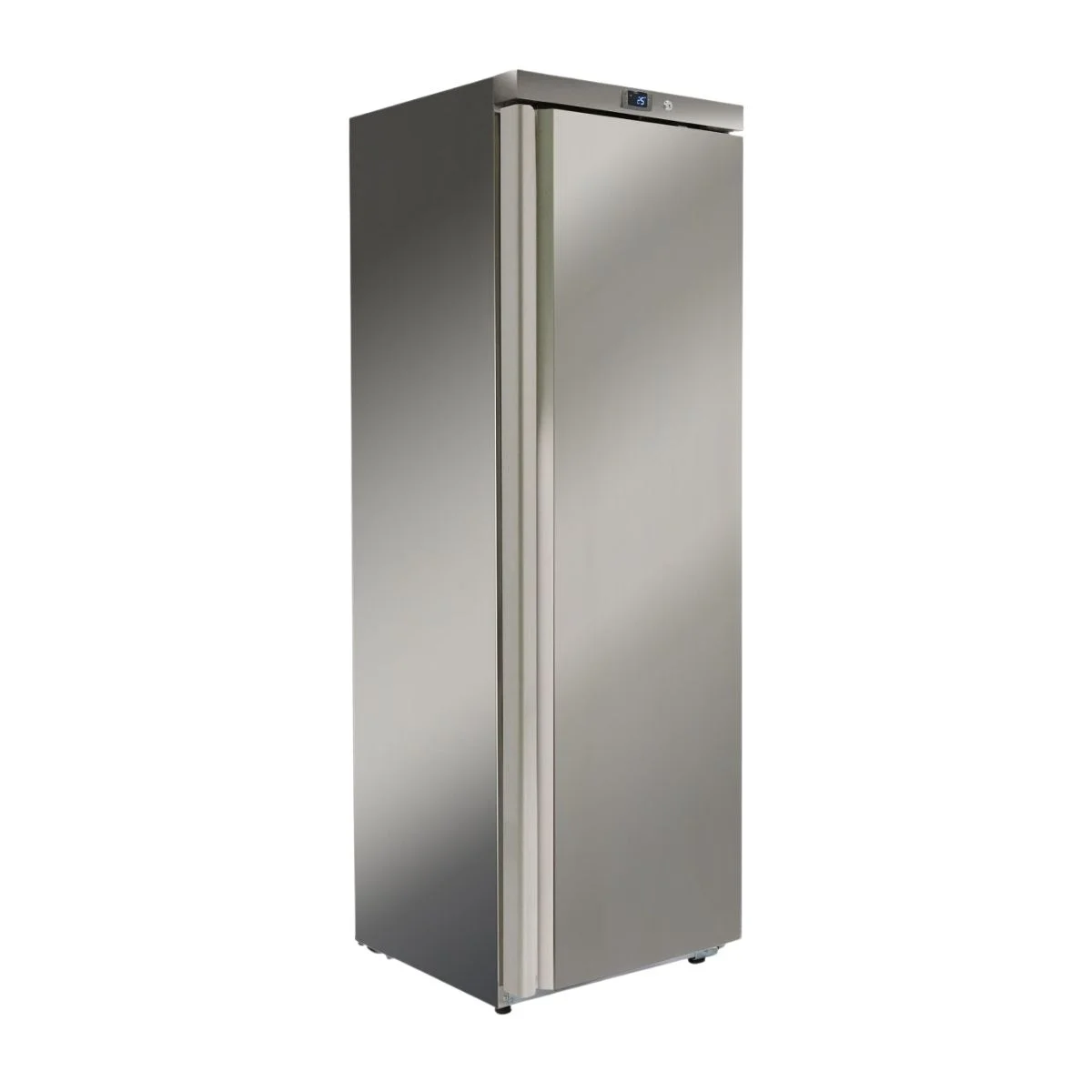

Upright Solid 1 Door Freezer 600 Sries DF400 S/S
The Blueline DF400 S/S is an upright reach-in freezer, running at -10 to -22 °C — full-height frozen storage on a small floor footprint, taking gastronorm shelves so pans move between the cabinet and the line without decanting. The cabinet measures 600 × 615 × 1870 mm. Inside, the usable chamber is 510 × 485 × 1620 mm.
Power is a single-phase 230 V / 50 Hz supply, so no three-phase provision is needed. At 74 kg empty two people can position it. It runs on R290, a hydrocarbon refrigerant with a global warming potential of 3; the charge is sealed and small but flammable, so keep the ventilation clearance the installation sheet specifies. The compressor is an Embraco / ZEL unit under a Dixell digital thermostat, mainstream parts an engineer can source locally.
360 litre gross capacity at -10 to -22 °C. 600 × 615 × 1870 mm external footprint. Made of AISI 201 stainless steel. Static cooling. ABS thermoformed interior with curved joints for easy cleaning.
