Barline Chiller 1406 Blueline

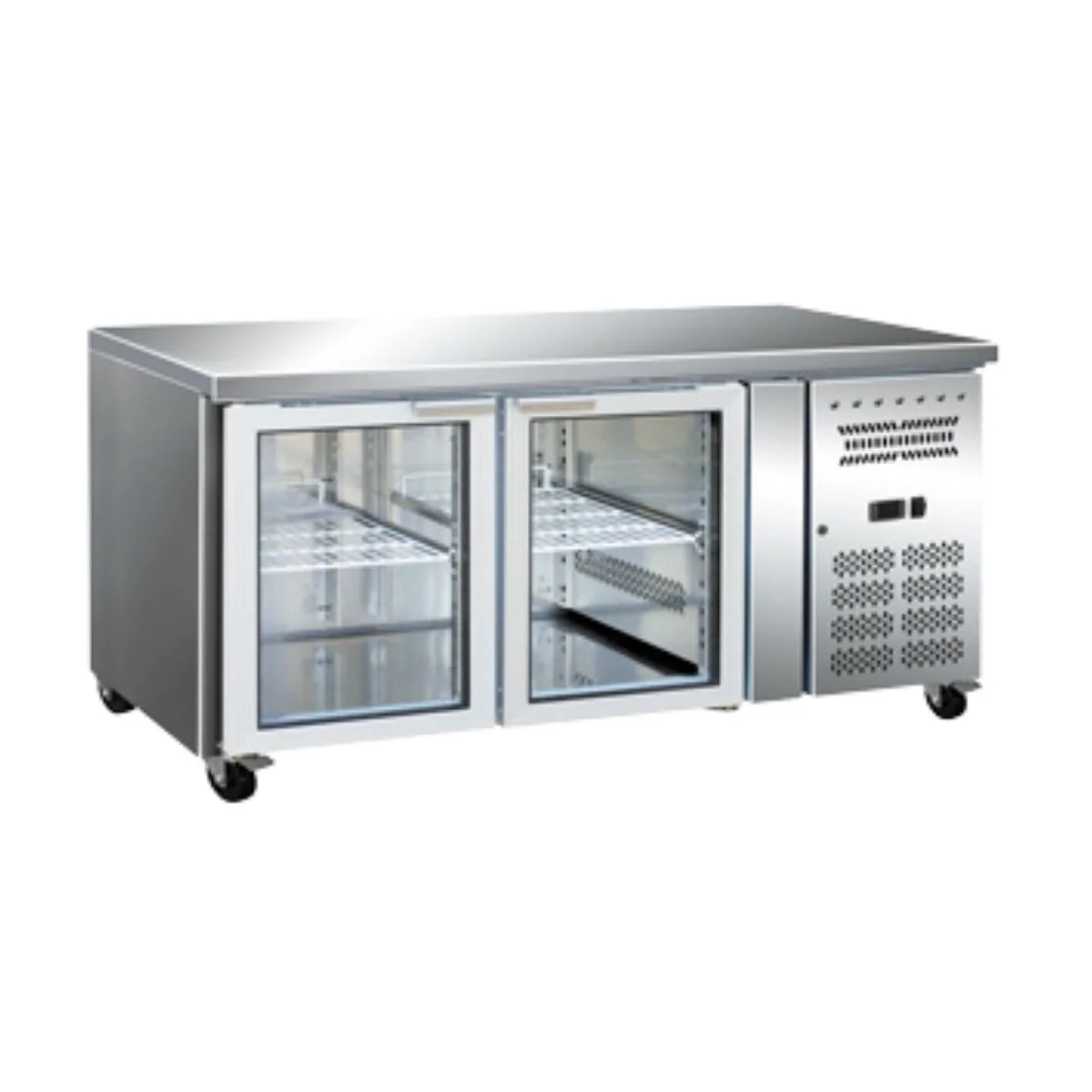

The Blueline SNACK2100TNG is a glass-door barline chiller, running at +2 to +8 °C — a bottle chiller for the back of a bar, whose glass doors let staff read the stock level without opening a door and losing the cold air. At 860 mm high it finishes flush under a standard counter top. The cabinet measures 1360 × 600 × 860 mm. Inside, the usable chamber is 795 × 480 × 589 mm.
Power is a single-phase 230 V / 50 Hz supply, so no three-phase provision is needed. At 95 kg empty two people can position it. It runs on R290, a hydrocarbon refrigerant with a global warming potential of 3; the charge is sealed and small but flammable, so keep the ventilation clearance the installation sheet specifies. The compressor is an Embraco / ZEL unit under a Dixell digital thermostat, mainstream parts an engineer can source locally.
260 litre gross capacity at +2 to +8 °C. 1360 × 600 × 860 mm external footprint, Digital thermostat - Dixell, automatic compressor cycle defrost and door with self closing (Not reversable).
